2017 Snorkel TB86J 4WD Diesel Telescopic Boom Lift For Sale or Rent in Colorado Springs
Elevate your operations with the 2017 Snorkel TB86J 4WD Diesel Telescopic Boom Lift—now available for sale or rent at Mountains Reign Equipment. This versatile workhorse offers 7,000 lb lift capacity and a massive 86 ft reach, making it the perfect choice for boom lift rental Colorado Springs or a smart addition to your fleet. Whether you're putting new windows in a multi-story build in Falcon, trimming trees in Peyton, or accessing hard-to-reach spots in Black Forest, the 2017 Snorkel TB86J 4WD Diesel Telescopic Boom Lift delivers power, precision, and reliability.
From our yard at 16975 Falcon Hwy, Peyton, CO 80831, we provide flexible options for contractors, developers, and ranchers throughout the Pikes Peak region—backed by our family-owned, Christian values and veteran-founded commitment to superior service.
Key Specifications: Engineered for High-Reach Performance
- Overall Length: 42 ft 3 in (12.9 m)
- Overall Width: 8 ft 6 in (2.6 m)
- Stowed Height: 9 ft 6 in (2.9 m)
- Ground Clearance: 13 in
- Platform Size: 8 ft × 3 ft (2.44 m × 0.91 m)
- Tailswing: 78.5 in
- Inside Turning Radius: 7 ft 10 in
- Outside Turning Radius: 15 ft 6 in
- Tires: 15 × 625 foam-filled lug tires
- Max. Working Height: 92 ft (≈28.2 m)
- Max. Platform Height: 86 ft (≈26.2 m)
- Max. Horizontal Reach: 78 ft 3 in (≈23.9 m)
- Jib Length: 6 ft 6 in (some references list 5 ft 6 in)
- Jib Working Arc: 135° (+70° / −65°)
- Max. Drive Height: 86 ft (full platform height)
- Platform Capacity (Unrestricted): 500 lbs (227 kg)
- Platform Capacity (Restricted): 750 lbs
- Platform Capacity (Restricted 2): 1,000 lbs (dual/triple rating depending on configuration and boom position; always check the specific machine’s capacity chart)
- Max. Wind Speed: 28 mph (12.5 m/s)
- Persons: Typically rated for 2
- Max. Drive Speed (Stowed): 3.0 mph (4.8 km/h)
- Max. Drive Speed (Elevated): 0.6 mph
- Gradeability: 40%
- Chassis Tilt Alarm: 5° (some configs list 3.5°)
- Raise/Lower Time: Approximately 70/65 seconds (varies slightly by source)
- Superstructure Rotation: 360° continuous
- Platform Rotation: 150° (some references note up to 178°)
- Power Source: Kubota V2403 diesel engine, 65 hp (48 kW), Tier 4 Final emissions
- Drive System: 4-wheel drive with 4-wheel steer and crab steer
- Controls: Proportional joystick controls for drive, boom lift, swing, and extend; rheostat controls for jib and platform leveling
- Machine Weight: 38,690 lbs (17,549 kg) — some dealer listings show up to ≈39,930 lbs depending on options/configuration
- Snorkel Guard™ secondary guarding system
- Hydraulic platform rotation
- Foam-filled lug tires
- Drive motion alarm and flashing amber light
- Power line to platform
- Tri-entry platform with dual lanyard attachment points

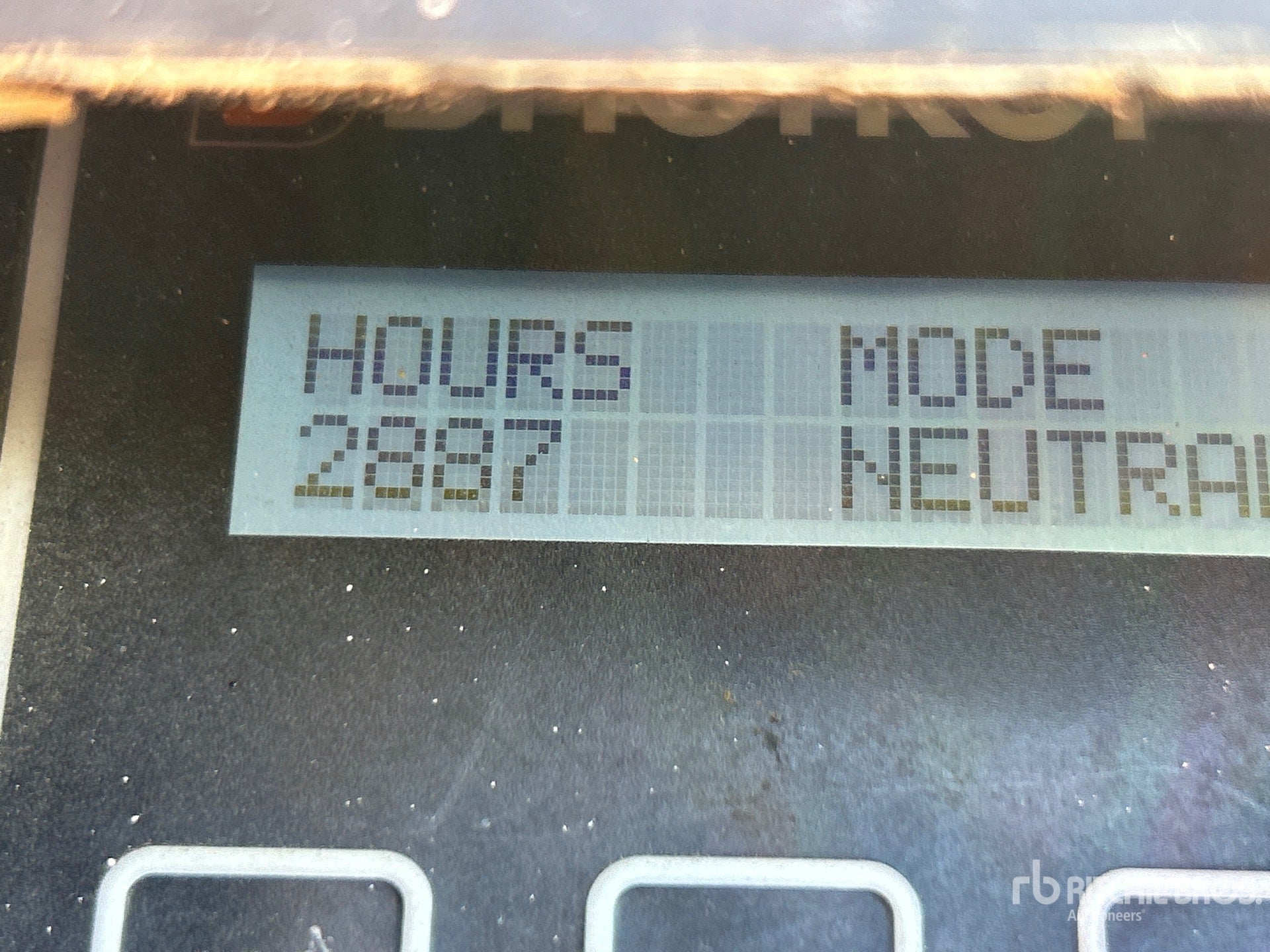

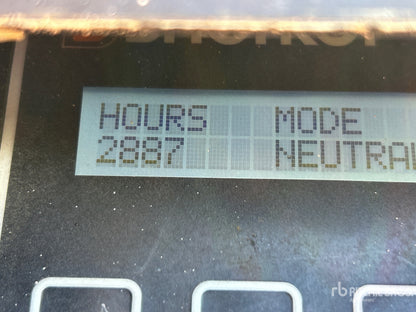

- Hour meter and onboard diagnostics display
- Horn
- ANSI compliant (with relevant safety features)
- 2-year parts & labor warranty / 5-year structural warranty
- Cold weather / extreme cold weather packages
- Extreme environment package
- Non-marking tires
- AC generator (2.5 kW or 12 kW options, with or without welder)
- Airline to platform
- Glazier / utility / tool tray / pipe rack packages
- Tow kit
- Special paint colors
- Environmental hydraulic oil
- Personal fall arrest system
- Light package
Specifications are based primarily on the manufacturer’s current product page and consistent dealer/official spec sheets. Minor variations exist across sources (e.g., exact platform height listed as 85 ft 1 in vs. 86 ft, or jib length) due to rounding, configuration differences (with/without certain options), or updates over the production run (2017–present). Always refer to the specific machine’s serial number, capacity chart, and operator’s manual for exact ratings.
Clean, serviced, and ready—whether renting for a week or buying long-term.
Rent or Buy? Tailored Options for Your Needs
We simplify access to the telehandler for sale Colorado Springs pros depend on. Choose based on your timeline and budget.
| Option | Best For | Details |
|---|---|---|
| Rent | Temporary lifts, seasonal projects, or low upfront costs | Flexible daily/weekly/monthly rates. Includes full inspection, ground-level service points, and attachment compatibility (e.g., forks, buckets). Delivery within 25 miles. |
| Buy | Fleet expansion, ownership perks, or high-volume use | Low-hour 2017 model. Financing, trade-ins, and warranties available. Invest in proven Snorkel durability. |
Rental Rates:
- Day: $500 | Week: $1,500 | Month: $2,500 Sale Price: Call (719) 800-1863 for current pricing and financing.
Delivery & Support – From Our Family to Yours
- Pickup: Same-day from Peyton (Monday–Saturday, 8 AM–5 PM).
- Delivery: Up to 50 miles (Colorado Springs, Falcon, Black Forest, Monument, Fountain). 48-hour notice; fees based on distance/weight. Site must be level and accessible.
- Service: On-site training, 24/7 support, and easy maintenance access.
Founded by a 20-year military veteran, Mountains Reign Equipment delivers heavy machinery sales in Black Forest CO with integrity and community focus—ensuring your success every step.
Reach New Heights – Rent or Buy Today
Secure the 2017 Snorkel TB86J 4WD Diesel Telescopic Boom Lift before it's gone. It's the reliable lift that keeps projects soaring.
Mountains Reign Equipment – Elevating rental and sales in Colorado Springs with faith-driven service and frontline performance.
